Advanced Building Products

ABP AdvancedDrain ® fabric on 2 sides

Save big right now

$605.20

SKU:: BGD250F2
Availability:: Usually Ships in 2 to 3 Weeks

Made With Quality Material

24/7 Technical Support

On Time Delivery

Safe & Secure Checkout

SSL Secure Payment

Orders are processed promptly and dispatched the next working day for fast delivery. Customers can expect quick arrival of packages. Further details can be found in the Terms of Service.

Product Details

FABRIC on 2 SIDES
Residential foundation walls
Balconies
Retaining Walls

Fabric on 2 sides:

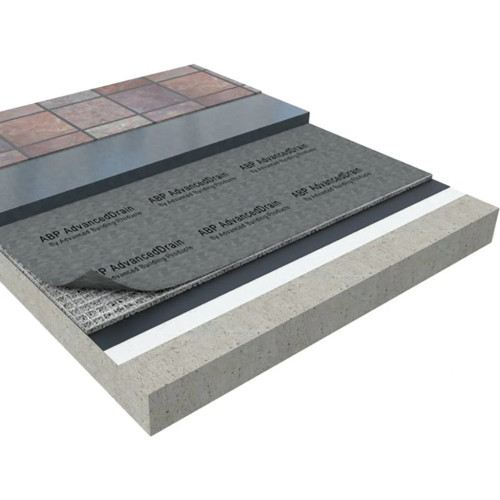

ABP AdvancedDrain® is a drainage composite mat consisting of parallel geometric drainage channels backed with a nonwoven filter fabric designed to eliminate hydrostatic pressure from behind below grade foundation walls, retaining walls, planters, plaza decks and balconies.

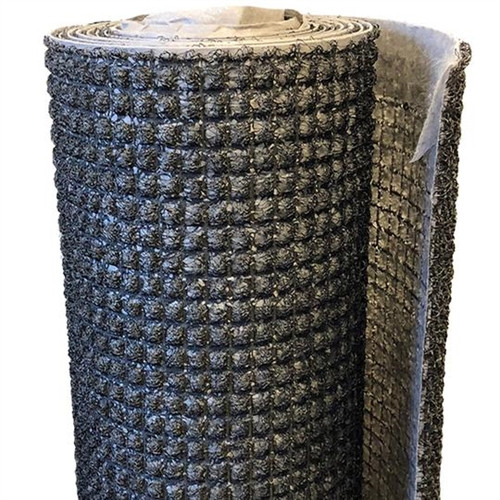

The product is produced from an extruded polymer matrix of tangled, randomly oriented monofilaments. The polymer matrix is then shaped into a series of parallel, porous channels designed to allow flow in all directions. It is then attached (heat bonded) to a polyester nonwoven filter fabric designed to prevent soil or sediment from entering the matrix of the system, while providing ample flow of water.

Applications:

Residential foundation walls
Retaining walls
Planters
Plaza decks
Balconies

Features & Benefits:

Filtration and drainage in one package.
Lightweight, easy to handle and install.
Installation in either vertical or horizontal direction.
Simple installation with either construction adhesive or termination bar.
Sufficient fabric overlap for sealing adjacent panels with construction adhesive to prevent soil intrusion at the joints.
Polymer core resistant to most known solvents and chemicals including acids and bases.
Convenient working width and roll length.

Size and Pallet Quantity: .25 in. Thickness, 39.5 in. X 135 ft. Roll 8 rolls / Pallet
