Posted by Spycor Building on May 22nd 2023
Foundation failure is one of the most expensive liabilities a builder can face. While traditional spray-on damp-proofing has been the industry standard for decades, it often fails to account for the inevitable: concrete cracking and hydrostatic pressure. This is where high-performance dimpled membranes like Platon Foundation Wrap change the equation.
For contractors and home builders, the question isn't just "Does it work?" but "Is it worth the investment over cheaper alternatives?" Below is the technical breakdown of why Platon Foundation Wrap remains the benchmark for sub-grade moisture management.
What Sets Platon Apart: The Science of the Air Gap

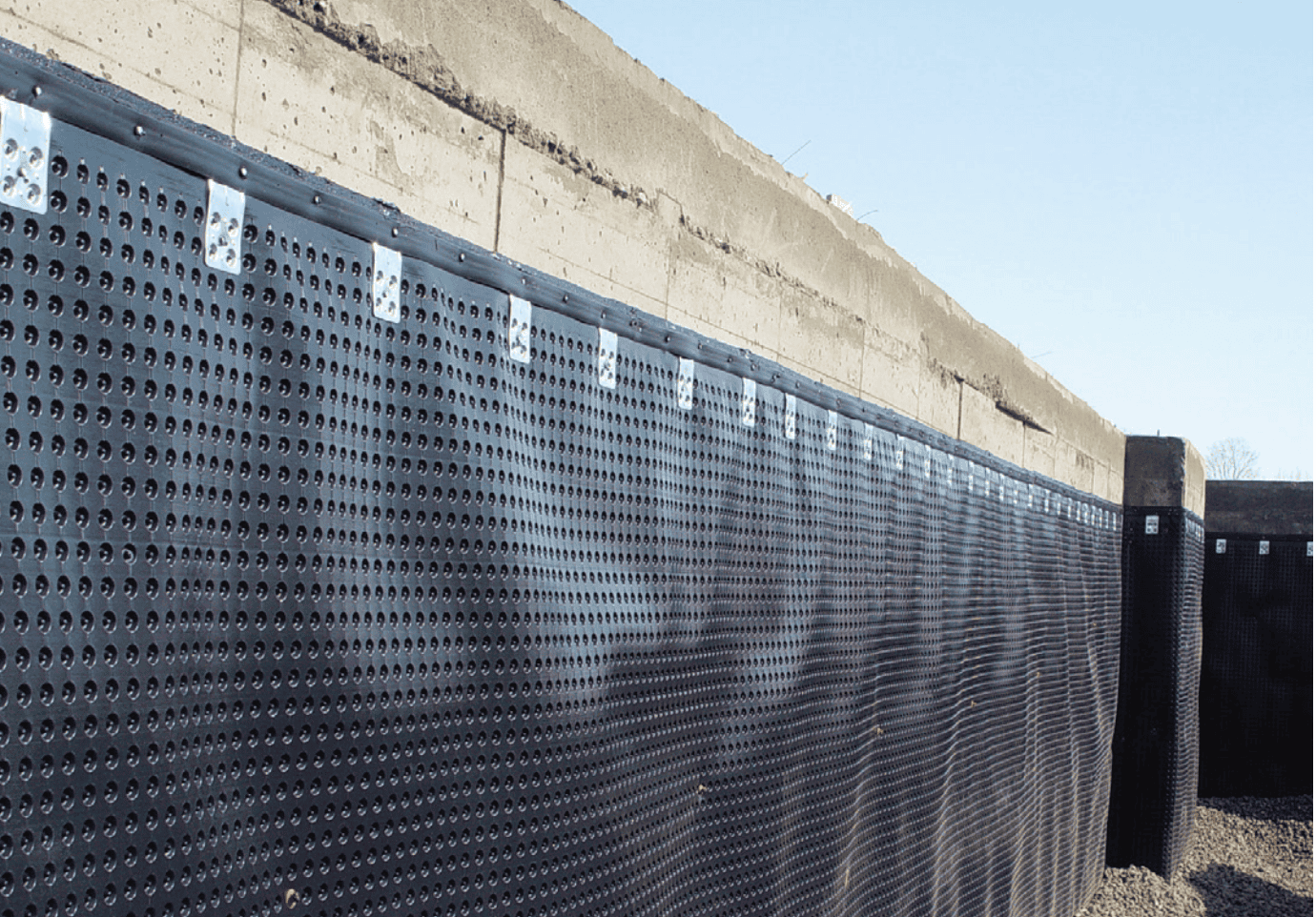

Most waterproofing methods attempt to "seal" the wall. Platon takes a mechanical approach by creating a continuous air gap between the foundation and the wet soil.
1. Hydrostatic Pressure Relief

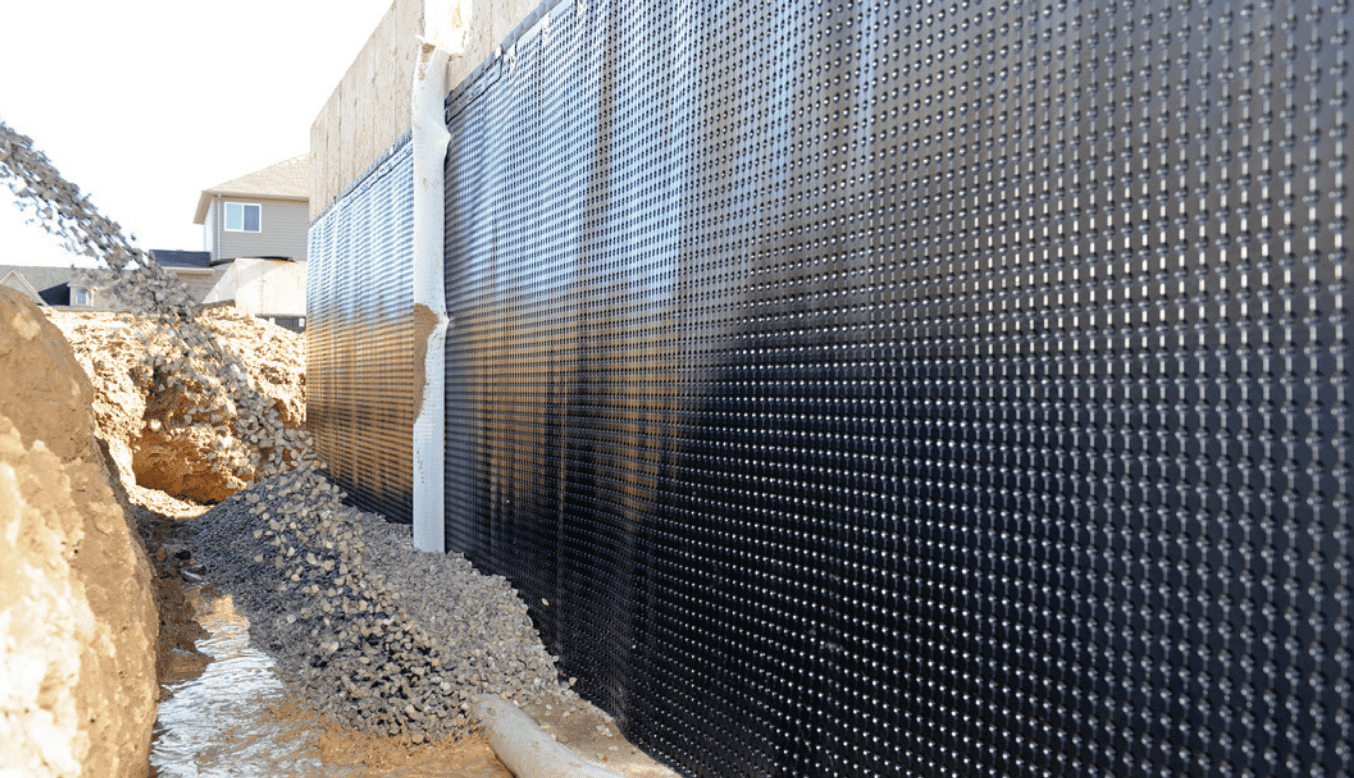

When soil becomes saturated, it exerts immense pressure against a foundation. Platon’s dimpled HDPE (High-Density Polyethylene) structure creates a 1/4-inch space that allows water to flow freely down to the footing tile. By providing a path of least resistance, it neutralizes hydrostatic pressure before it can force water through microscopic cracks in the concrete.
2. Concrete "Breathing" Room
Concrete is porous. Even with a coating, moisture can get trapped between the soil and the wall. Platon’s air gap allows the foundation wall to dry from the outside, preventing the "sweating" often seen in basements that rely solely on spray-on membranes.
3. Bridging Foundation Cracks
Foundations settle. When a poured wall or concrete block develops a hairline crack, a traditional spray-on coating will often snap or peel at that point. Because Platon is a physical barrier that hangs loosely (yet securely) against the wall, it bridges those cracks, ensuring the interior remains dry even if the structure moves.

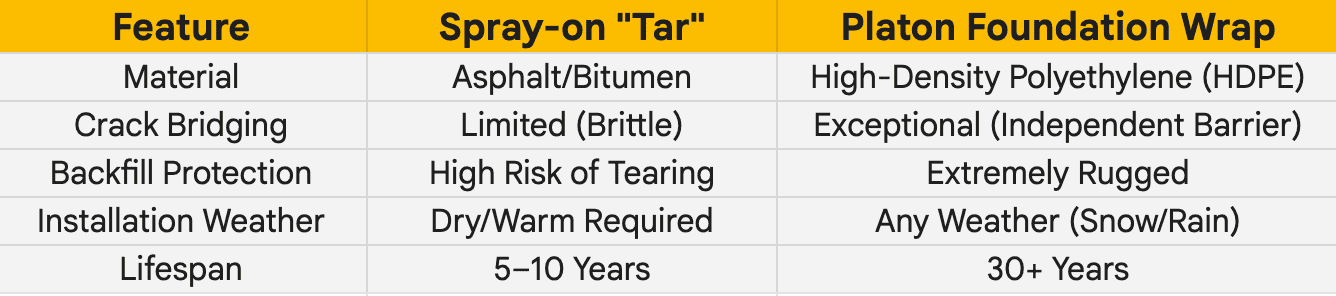

Technical Comparison: Platon vs. Spray-on Damp-proofing
Why Contractors Prefer the Platon System
For General Contractors and Waterproofing Specialists, profitability is tied to speed and the absence of callbacks.
-

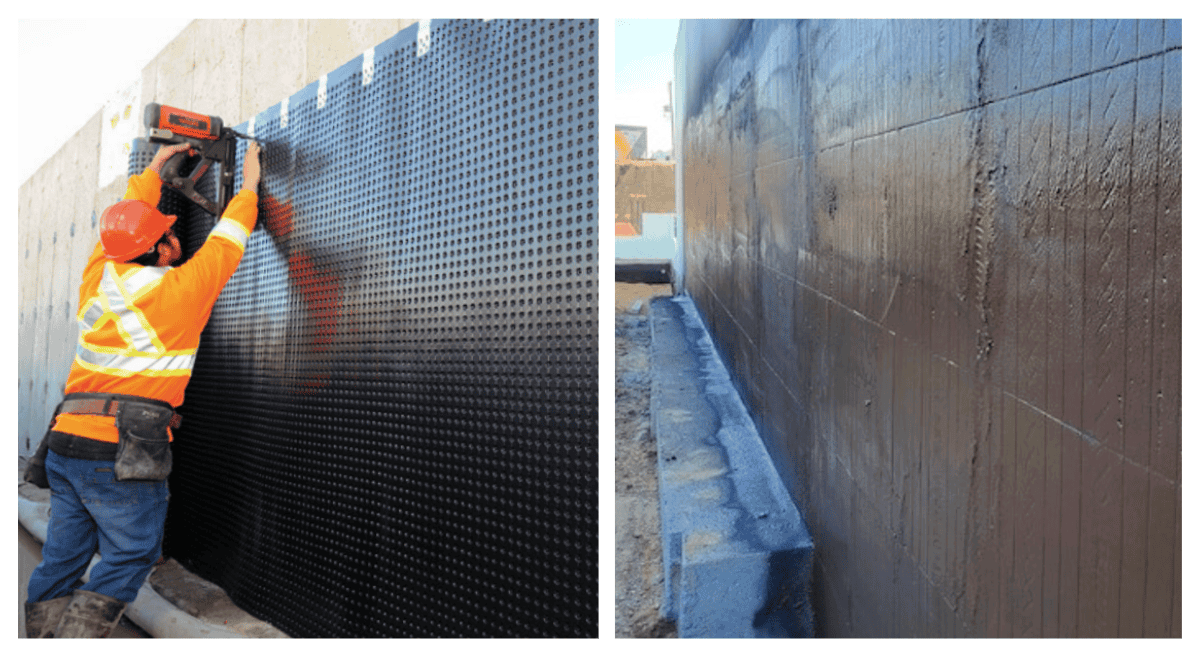

Zero-Wait Installation: Unlike liquid membranes that require specific temperatures and curing times, Platon can be installed in rain, snow, or freezing temperatures. This keeps your project on schedule regardless of the season.
-
Speedclips & Speedstrips: The Platon system utilizes specialized fasteners that eliminate the need for complicated sealing. Speedclips hold the membrane securely while the Speedstrips seal the top edge to prevent debris from clogging the air gap.
-
ICF Compatibility: Platon is chemically inert, making it the safest and most effective choice for Insulated Concrete Forms (ICF). It provides the necessary drainage without reacting with the foam insulation.
Is Platon Worth the Cost?
The "worth" of a foundation wrap is measured in risk mitigation. The cost of excavating a failed foundation 10 years post-construction is ten times the initial cost of a Platon installation. For custom home builders and commercial developers, Platon provides:
-
Reduced Liability: Fewer warranty claims for wet basements.
-
Marketability: A "dry basement guarantee" is a significant selling point for high-end residential builds.
-
Durability: HDPE is resistant to soil acids, alkalis, and root penetration.
Order Platon Foundation Wrap Online
Stop settling for "good enough" waterproofing. Protect your builds with the industry-leading dimpled membrane. Spycor Building Products stocks a full range of Platon roll sizes and essential installation accessories like Speedclips and Molding Strips.
Frequently Asked Questions (FAQ)
Does Platon replace the need for a footer drain?
No. Platon is designed to work in tandem with a functional perimeter drainage system (French drain). It directs the water down to the drain tile more efficiently than soil alone.
Can Platon be used on wood foundations?
Yes. Platon is an excellent solution for Permanent Wood Foundations (PWF), providing a rugged barrier that keeps moisture away from the wood structure.
How do you handle overlaps in the membrane?
Platon rolls should be overlapped by at least 6 inches (or two rows of dimples) to ensure a continuous drainage plane. For high-water table areas, a bead of foundation sealant can be used between the overlaps.
Is Platon resistant to chemicals in the soil?
Yes. Being made from HDPE, Platon is highly resistant to the common acids and alkalis found in backfill soil, as well as bacteria and fungi.
What roll sizes are available?
Platon typically comes in various heights (from 4' to 8' rolls) to match the height of your foundation wall, minimizing waste and horizontal seams.
