Clay and heavy soils are a foundation’s worst nightmare. Because clay particles are tiny and packed tightly, they retain water longer than any other soil type. This leads to hydrostatic pressure—the relentless force of water pushing against your foundation walls. Without a high-performance drainage system, even the best waterproofing will eventually fail, leading to cracks, leaks, and structural instability.

For home builders and civil contractors, the solution is the Dörken DELTA-DRAIN. This dimpled drainage board is specifically engineered to handle the high-stress environments of below-grade waterproofing.

The Problem with Heavy

Soils: Hydrostatic Pressure

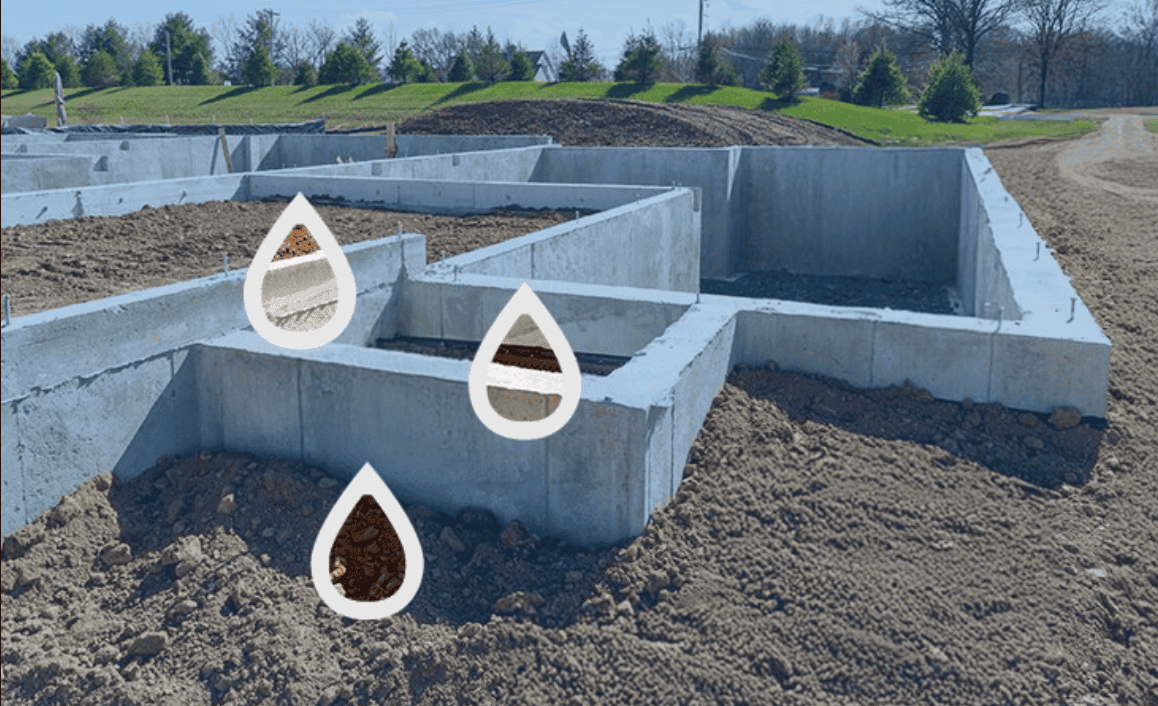

When it rains, clay soil expands and holds water like a sponge. This "perched water table" creates immense pressure against foundation walls.

• Traditional French drains often clog in clay. Over time, fine clay particles migrate into the pipe and gravel, effectively "sealing" the drain and leaving the water with nowhere to go.


• Spray-on waterproofing can be punctured during backfill. Without a protective layer, jagged rocks and heavy debris can easily tear through liquid membranes as the soil settles, creating immediate leak points.


• Gravel-only drainage is labor-intensive and expensive. Moving tons of aggregate requires heavy machinery and significant man-hours, and without a vertical drainage plane, it provides zero protection against the lateral pressure of the soil itself.

DELTA-DRAIN solves these issues by creating a permanent, high-capacity flow path for water to reach the footer tiles before it ever touches the wall.

What is DELTA-DRAIN?

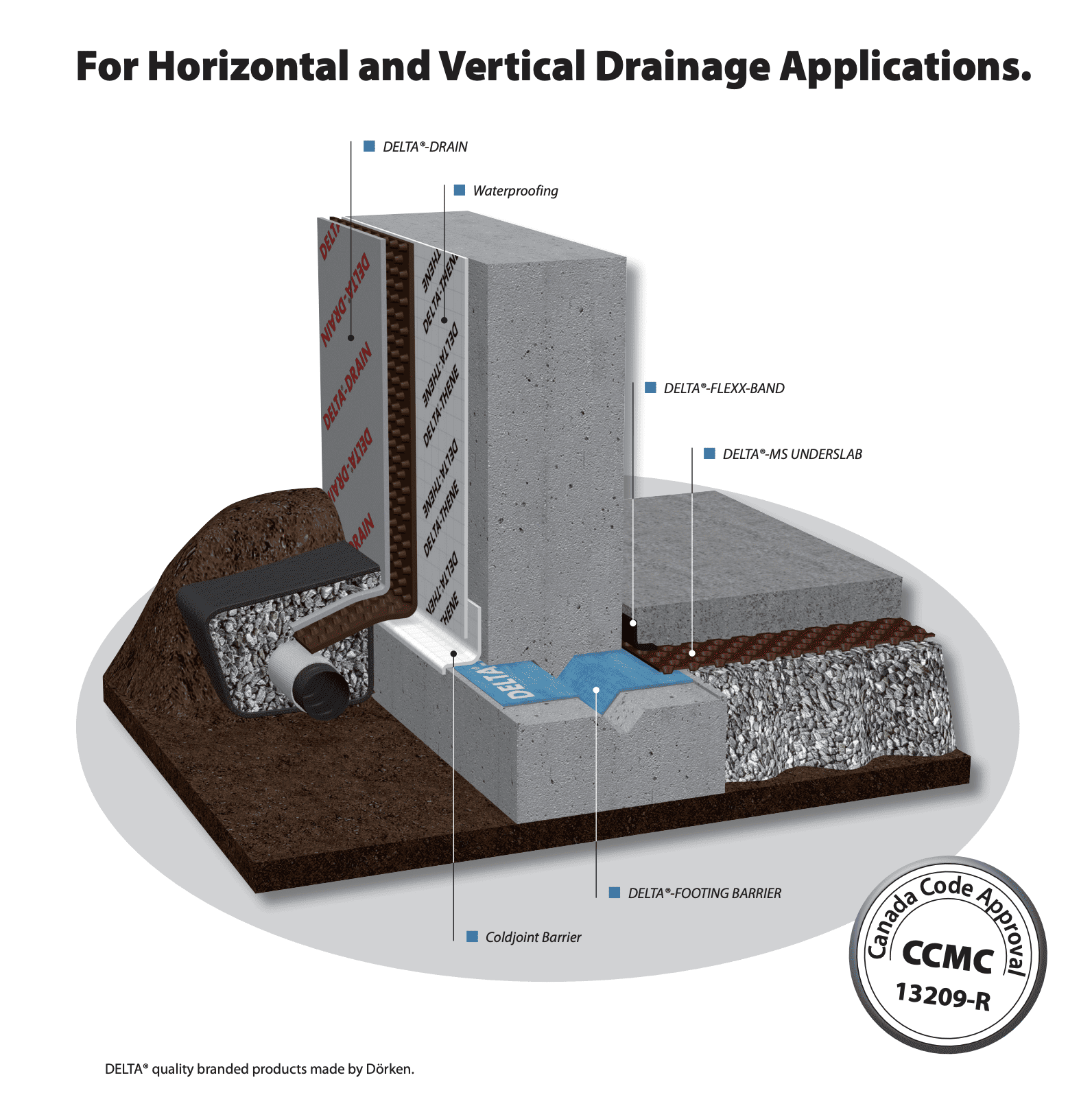

Dörken DELTA-DRAIN is a high-performance, multi-layered geotextile drainage mat. It consists of a high-density polyethylene (HDPE) dimpled core bonded to a high-strength needle-punched geotextile.

The dimples face the soil, creating an air gap against the wall, while the geotextile fabric filters out fine soil particles (silt and clay) to prevent the drainage path from clogging.

Key Technical Specifications:

• Material: High-Density Polyethylene (HDPE)

• Compressive Strength: High resistance to soil overburden.

• Drainage Capacity: Exceeds most building code requirements.

• Roll Size: Available in 8.0 ft x 65.6 ft (524.8 sq. ft.) rolls for maximum coverage.

Why Contractors Choose

DELTA-DRAIN for

Foundation Protection

1. Superior Below-Grade Waterproofing Protection

The HDPE core acts as a heavy-duty "armor" for your primary waterproofing membrane. During backfill, large rocks and debris can easily tear liquid-applied coatings. DELTA-DRAIN absorbs that impact, ensuring your primary seal remains intact.

2. High Flow Rate in Saturated Soils

In heavy clay, water movement is slow. DELTA-DRAIN’s dimpled structure provides a massive surface area for water to collect and drop straight to the perimeter drain. This immediately relieves hydrostatic pressure.

3. Clog-Resistant Geotextile Fabric

The needle-punched geotextile is the "brain" of the system. It allows water to pass through while keeping the fine clay particles out. This ensures the air gap remains open for the life of the building.

4. Rapid Installation for Large-Scale Projects

Time is money for foundation repair and waterproofing specialists. DELTA-DRAIN is lightweight and easy to handle. Large 8-foot rolls mean fewer seams and faster installation times compared to rigid board systems.

DELTA-DRAIN vs. Standard

Dimpled Boards

Many "standard" dimpled boards are simple, single-layer plastic sheets designed primarily for damp-proofing. While they create an air gap, they lack a filtration layer.

• The Failure Point: In clay-heavy environments, as water moves toward the foundation, it carries fine soil particles with it. Without a barrier, these particles flow directly into the dimples.

• The Result: Over a few seasons, the dimples become packed with sediment. The "drainage path" disappears, and the board becomes nothing more than a plastic sheet trapped against a wet wall, allowing hydrostatic pressure to build up once again.

DELTA-DRAIN is a true geotextile drainage mat, engineered as a two-part system to ensure the drainage path stays open for the life of the structure.

• Layer 1: The High-Density Core: A rugged, dimpled HDPE core that provides high compressive strength, ensuring the drainage space doesn't collapse under the massive weight of deep backfill.

• Layer 2: The Integrated Geotextile Fabric: This heat-bonded, needle-punched fabric acts as a permanent filter. It allows water to pass through freely while blocking even the smallest silt and clay particles.

Applications for Civil and

Commercial Contractors

While great for residential basements, DELTA-DRAIN is a staple in civil engineering and commercial foundation projects:

• Retaining Walls: Relieving pressure behind tall concrete or block walls is essential for long-term stability. Without proper drainage, water weight can cause walls to tilt, crack, or suffer catastrophic blowouts.

• Blindside Waterproofing: Ideal for tight urban construction sites where there is no room to excavate outside the foundation. In these "zero-lot-line" scenarios, DELTA-DRAIN is installed directly against the shoring system before the concrete wall is poured.

• Tunnels and Culverts: Managing groundwater in heavy infrastructure requires materials that can withstand constant moisture and high soil loads. DELTA-DRAIN provides a high-capacity flow path that prevents water from pooling around the structure's exterior, significantly extending the lifespan of the concrete and preventing internal seepage that could lead to icing or structural decay.

• Under-slab Drainage: Preventing "floating" slabs in areas with high water tables is a major concern for commercial warehouses and parking structures.

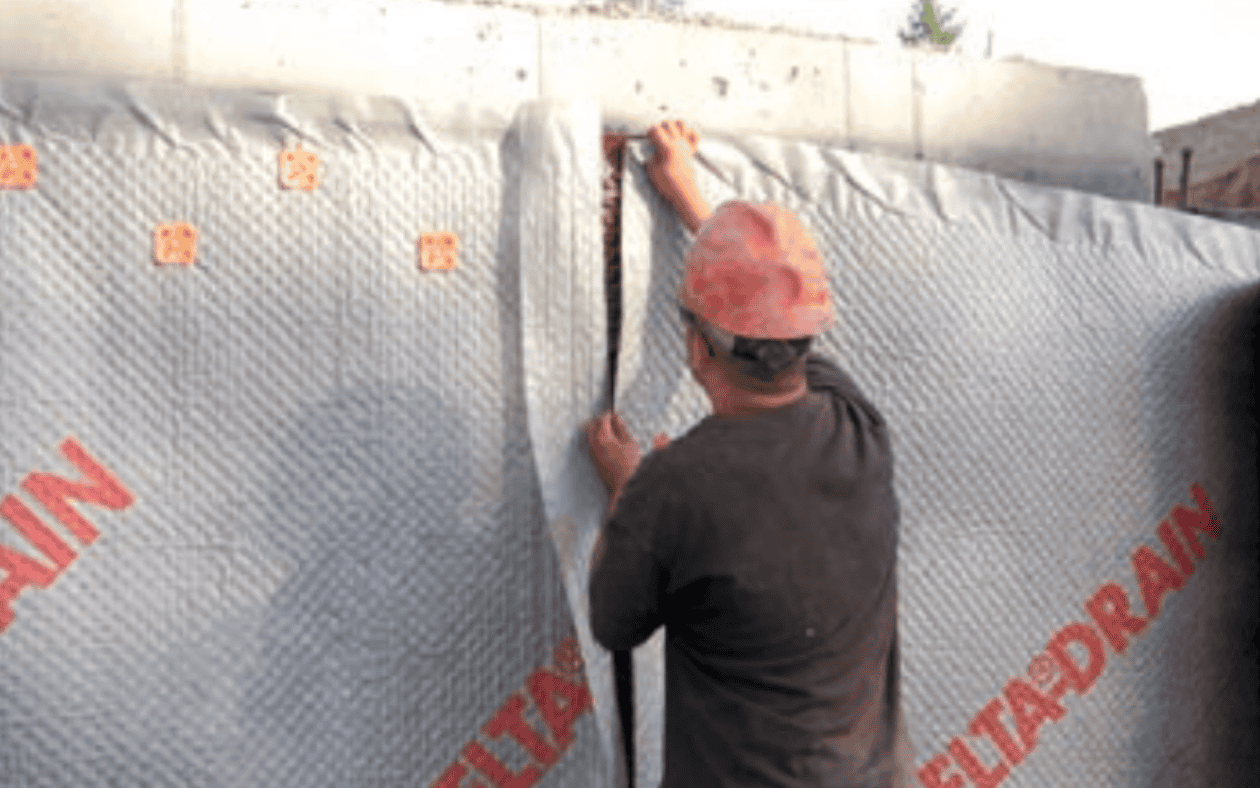

Step-by-Step: Installing

DELTA-DRAIN in Clay Soil

To ensure the highest building performance, follow these industry-standard installation steps:

1. Wall Preparation: Clean the foundation wall and apply your primary waterproofing (liquid-applied or sheet-good).

2. Roll Out: Start at a corner. Unroll DELTA-DRAIN with the geotextile fabric facing the soil.

3. Mechanical Fastening: Use DELTA-FASTENERS to secure the top edge of the board above the grade line.

4. Overlapping: Overlap the edges by at least 6 inches to ensure a continuous drainage plane.

5. Termination: Use DELTA-FLASH to seal the top edge, preventing dirt from falling behind the membrane.

6. Footer Integration: Ensure the bottom of the DELTA-DRAIN extends down to the drainage pipe (French drain) and is covered by clean gravel.

Best Drainage Membrane

for Clay Soil: The Verdict

For Foundation Repair & Waterproofing Specialists, the choice is clear. If you are working in regions with heavy clay—like the Midwest, Southeast, or parts of Texas—relying on gravel alone is a massive risk. Gravel eventually "sands over" as clay fines migrate into the voids, turning your drainage layer into a solid, impermeable mass that traps water against the structure.

Dörken DELTA-DRAIN provides the critical redundancy needed to prevent basement flooding and structural wall bowing caused by soil expansion. By ensuring a permanent, open-flow path, it relieves the relentless weight of wet earth that leads to foundation shearing and costly warranty callbacks. It is the most cost-effective insurance policy you can install on a foundation—offering peace of mind for the homeowner and a "done once, done right" reputation for the contractor.

Looking for Commercial

Foundation Drainage Board

Suppliers?

Spycor Building Products is the leading distributor for high-performance drainage solutions. We specialize in bulk orders for large-scale commercial and residential projects.

Order your DELTA-DRAIN rolls today and protect your foundation from the heaviest soils.

Buy DELTA-DRAIN (8.0 ft x 65.6 ft) - Single Rolls & Bulk

Frequently Asked Questions (FAQ)

What is the difference between DELTA-MS and DELTA-DRAIN?

DELTA-MS is primarily a damp-proofing membrane used to keep soil moisture away from the wall. DELTA-DRAIN includes a bonded geotextile fabric, making it a true drainage system that moves high volumes of water in saturated soil conditions.

Can I use DELTA-DRAIN for commercial retaining walls?

Yes. DELTA-DRAIN is highly recommended for commercial retaining walls to relieve hydrostatic pressure, which is the leading cause of wall failure.

Where to buy DELTA-DRAIN in bulk?

You can purchase DELTA-DRAIN in bulk through Spycor Building Products. We offer competitive pricing for pallet and truckload quantities for civil contractors and large-scale builders.

Does DELTA-DRAIN replace waterproofing?

DELTA-DRAIN is a drainage and protection layer. While it provides excellent water management, it should be used in conjunction with a primary waterproofing membrane for the best below-grade protection.

How does clay soil affect foundation drainage?

Clay soil has low permeability. It holds water against the foundation, increasing pressure. DELTA-DRAIN provides the "path of least resistance," allowing that water to fall into the drainage tiles rather than seeping through the concrete.
