Subsurface water management is the single most critical factor in the structural integrity of commercial foundations and high-end residential builds. For foundation contractors and developers in high-moisture regions—especially those dealing with heavy rainfall or high water tables—the challenge isn't just moving water; it's ensuring the drainage system survives the immense lateral pressure of backfill.

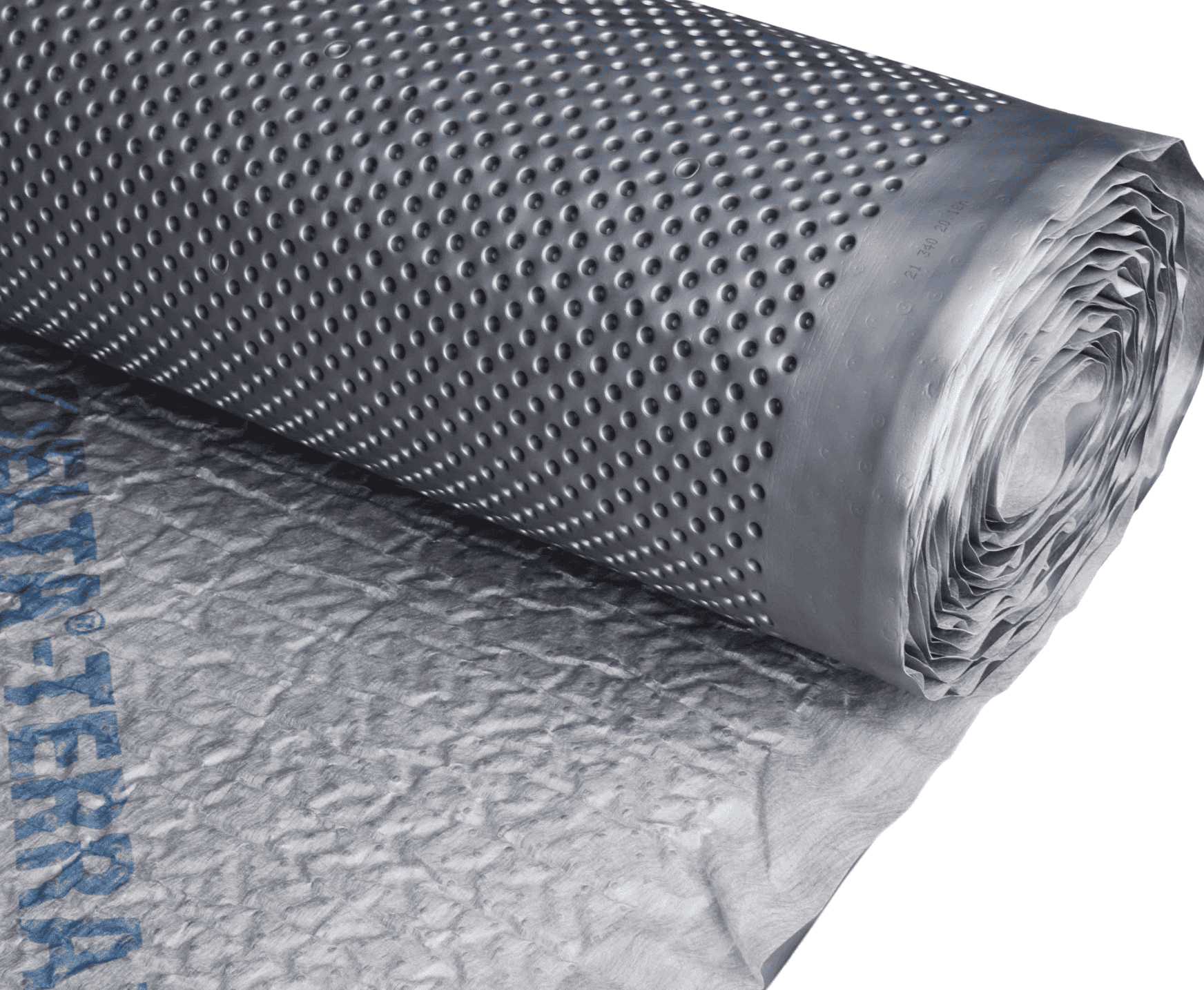

The DELTA®-TERRAXX Vertical drainage board is engineered to solve the "invisible" failure points that plague commodity dimple boards. While standard products often collapse or clog within a few seasons, DELTA®-TERRAXX provides a documented 100-year service life and the highest compressive strength in its class.

Why DELTA®-TERRAXX is the Best Drainage Board for Foundations

When comparing foundation wall drainage systems, most "contractor-grade" options fail due to two engineering flaws: Compression Collapse and Geotextile Clogging.

1. Zero-Collapse Core: DELTA®-TERRAXX maintains its physical profile even seven stories below grade.

2. Clog-Proof Filtration: Unlike thin, loosely woven fabrics that "cake" with soil fines, this system uses a specialized heat-bonded geotextile that stays clear for decades.

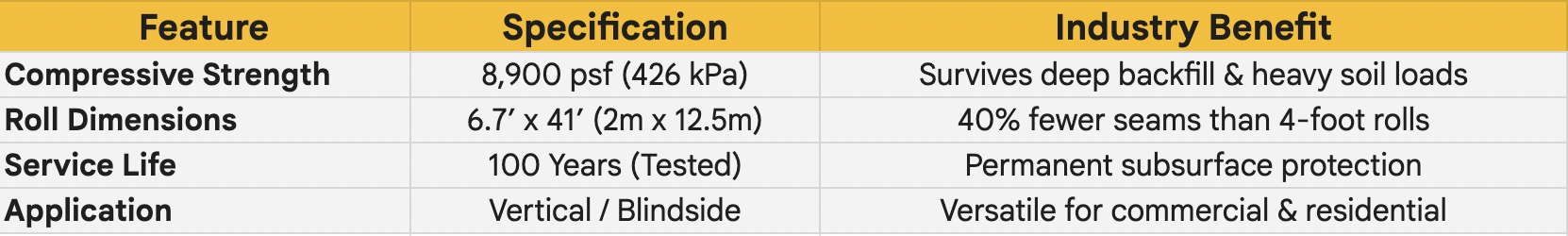

High-Performance Technical Specifications



Engineering Superiority: Drainage Board vs. Dimple Board

For specifiers and engineers, the distinction between a simple dimple board and a high-performance drainage composite like DELTA®-TERRAXX is vital.

8,900 psf Compressive Strength

At 426 kPa, this board offers superior resistance to soil surcharges. In regions with heavy clay soils—common in the Gulf Coast and across the South—soil expansion can crush inferior boards. DELTA®-TERRAXX ensures the 2-layer air gap remains open, facilitating constant water flow to the footer tiles.

Heat-Bonded Performance Geotextile

The non-woven geotextile is heat-bonded to the HDPE dimpled core. This prevents the fabric from being pushed into the dimples by soil pressure—a common cause of drainage failure. This calibrated filtration layer allows water through while blocking the silt that leads to system backups.

Operational Efficiency for Contractors & GCs

On the jobsite, time is revenue. The design of the DELTA®-TERRAXX drainage board is optimized for rapid deployment:

• 2-Meter Wide Rolls: At 6.7’ wide, you cover more vertical surface area per pass. Fewer overlaps mean less tape, fewer fasteners, and a significantly faster installation rate.

• Jobsite Versatility: It is lightweight and easily cut with a utility knife, allowing for precise detailing around penetrations and corners without specialized equipment.

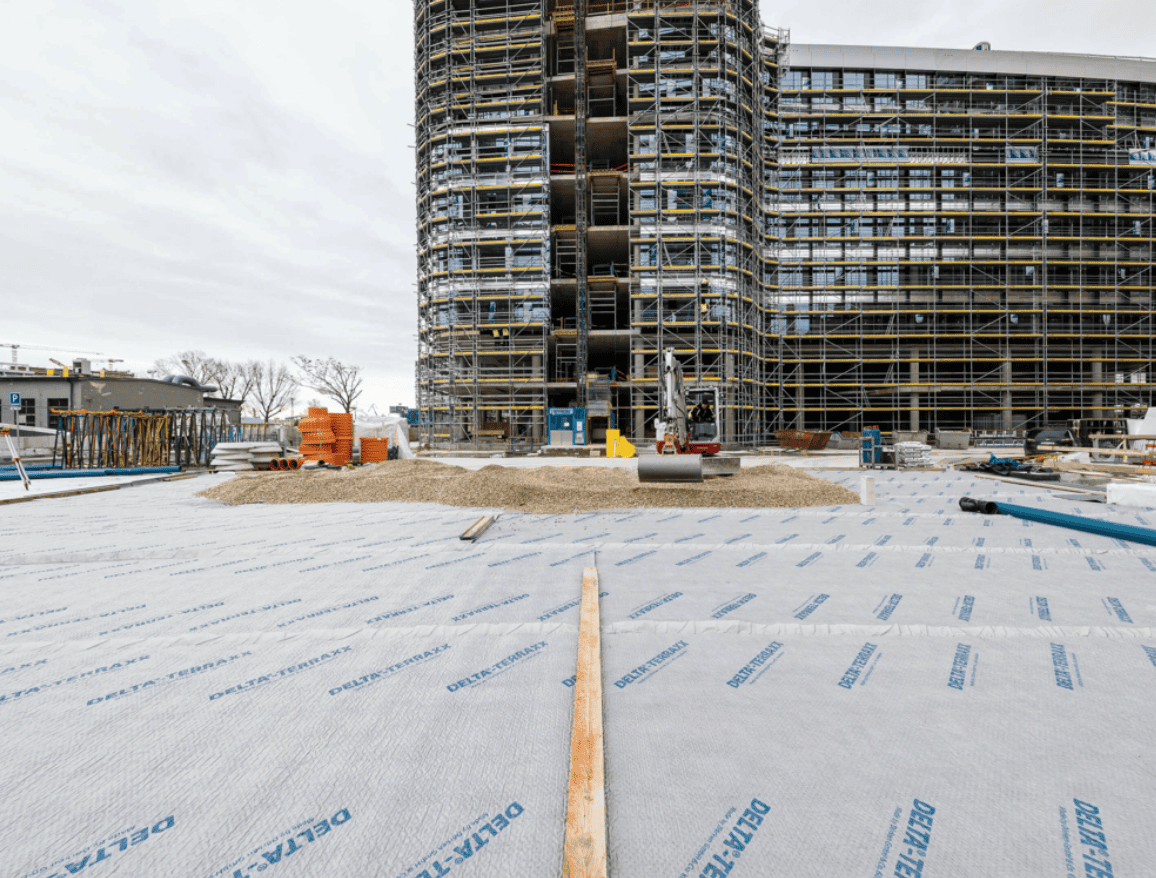

• Extreme Depth Rating: Suitable for vertical applications up to seven stories below grade, making it the go-to solution for underground parking garages and deep commercial excavations.

The Strategic Choice for Commercial Developers

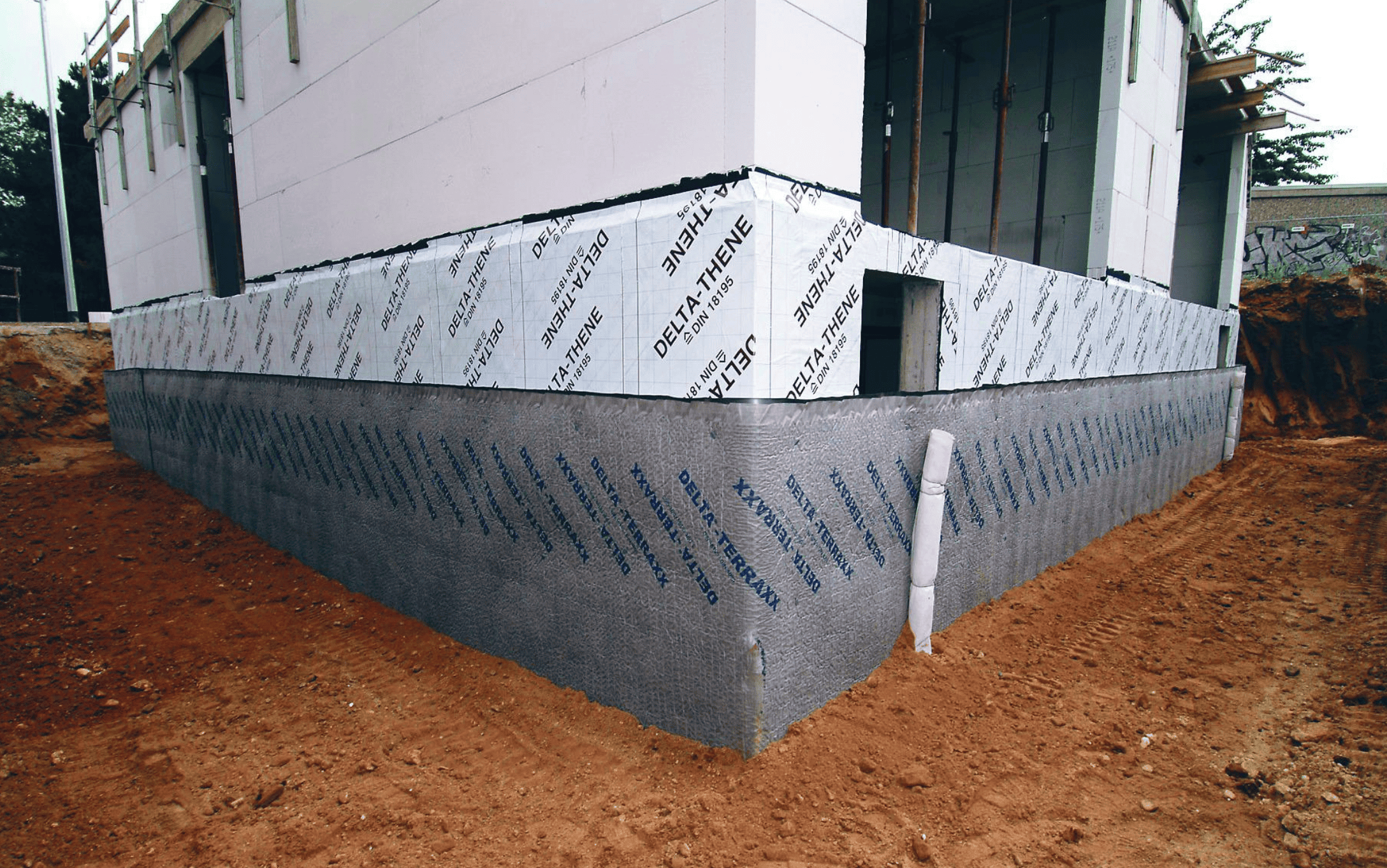

For developers, a foundation leak is more than a repair cost; it is a long-term liability. By specifying the DELTA®-TERRAXX vertical drainage membrane, you ensure:

• Frost Damage Prevention: By keeping the foundation wall dry, you eliminate the freeze-thaw cycles that crack concrete.

• Chemical Resistance: The HDPE core is impervious to naturally occurring soil acids and alkalis.

• Asset Protection: A dry basement or parking structure maintains higher property value and lower insurance premiums.

Order Your DELTA®-TERRAXX Vertical Drainage System

For projects that require uncompromising moisture management, there is no substitute for Dörken engineering. Whether you are managing a deep-grade commercial pour or a high-end custom home, your foundation is only as good as its drainage layer.

Don’t risk your reputation on commodity boards.

Shop DELTA®-TERRAXX 6.7' x 41' at Spycor Building Products

Get Professional Support & Bulk Contractor Rates – Contact Us Today.

Frequently Asked Questions (FAQ)

What is the difference between DELTA®-TERRAXX and DELTA®-MS?

DELTA®-MS is a damp-proofing membrane primarily for residential use. DELTA®-TERRAXX is a high-performance drainage composite that includes a factory-bonded geotextile for active water management and much higher compressive strength (8,900 psf).

Is this the best drainage board for foundations in high water table areas?

Yes. Because of its high in-plane flow capacity and clog-resistant fabric, it is specifically recommended for regions with heavy rainfall and soils that retain significant moisture.

Can I use DELTA®-TERRAXX for blindside waterproofing?

Absolutely. It is frequently used in blindside applications against shoring walls. Its high strength ensures it remains intact during the concrete pour.

How many rolls do I need for my project?

Each roll covers approximately 275 square feet (6.7’ x 41’). Because the rolls are wider than standard 4-foot boards, you will generally use less material at the overlaps.

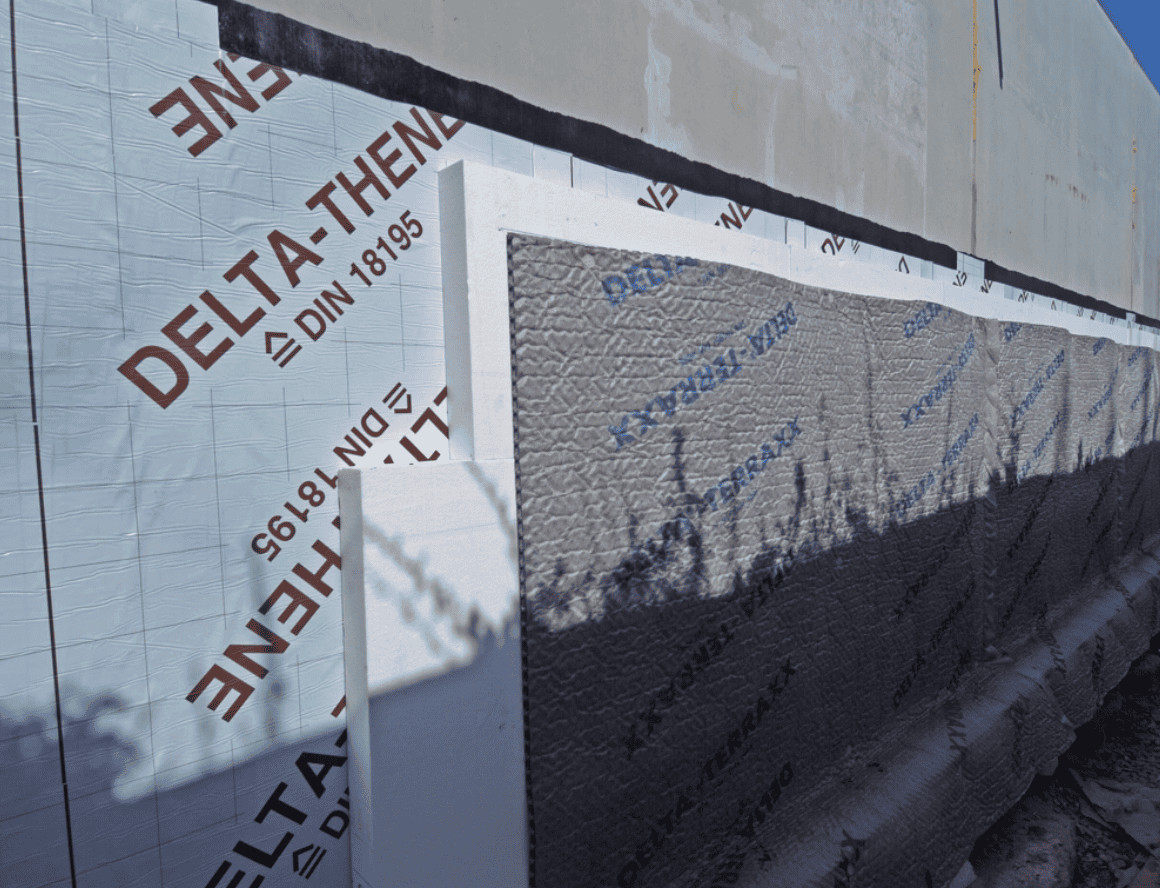

Does it require a primary waterproofing membrane?

Yes. DELTA®-TERRAXX acts as the drainage and protection layer. It should be installed over a primary waterproofing membrane to provide a complete "belt and suspenders" protection system for the structure.
