In high-stakes environments—healthcare construction, mold remediation, and hazardous abatement—the negative air machine (NAM) is the only line of defense between a controlled workspace and a catastrophic contamination event.

However, a negative air machine is only as effective as its HEPA filter. Using the wrong replacement or failing to swap filters at the correct pressure interval compromises your CFM (Cubic Feet per Minute), risks OSHA/EPA non-compliance, and endangers personnel.

This guide provides the technical specifications and procurement standards required for professional negative air machine HEPA filter replacement.

1. Critical Specifications for Professional HEPA Replacements

When sourcing replacements for industrial-grade negative air machines, generic filters are a liability. To maintain certified negative pressure, your filters must meet these three non-negotiable criteria:

99.97% to 99.99% Efficiency at 0.3 Microns

For ICRA (Infection Control Risk Assessment) levels III and IV in healthcare or for asbestos abatement, the filter must be DOP tested and certified. Standard HEPA filters capture 99.97% of particles; however, high-precision facilities often require 99.99% to ensure zero bypass.

High-Capacity vs. Standard Capacity

Negative air machines move a high volume of air.

• Standard Capacity: Suitable for light dust and shorter projects.

• High-Capacity: Feature deeper pleats and more media surface area. These are essential for long-term remediation projects to prevent rapid "loading," which drops your CFM and triggers machine alarms.

Frame Integrity: Wood vs. Metal

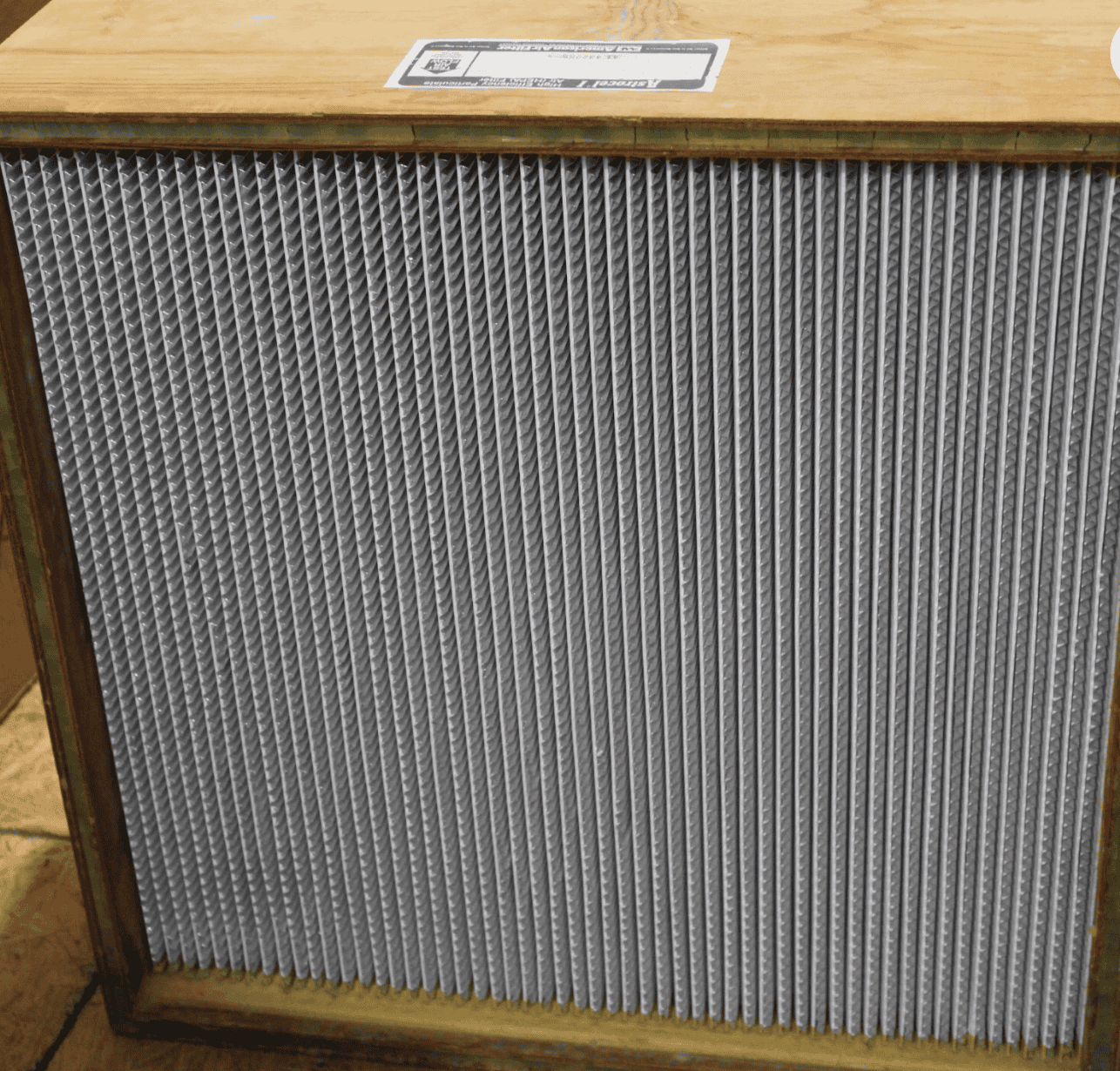

• Particle Board/Wood Frames: The industry standard for remediation. They offer a tight seal against the machine's gasket and are easily disposable.

• Metal Frames: Recommended for high-moisture environments or permanent pharmaceutical air scrubbing where frame warping could cause air bypass.

2. Industry-Specific Requirements for HEPA Filtration

Healthcare Construction & Hospital Renovations

Contractors working under ICRA guidelines must ensure that NAMs are exhausting air that is free of Aspergillus and other healthcare-associated pathogens. A certified negative air machine HEPA filter replacement is mandatory to prevent hospital-acquired infections (HAIs).

Mold Remediation & Asbestos Abatement

In these sectors, filter "loading" happens quickly. Using a high-capacity HEPA filter allows for a higher dust-holding capacity, reducing the frequency of filter changes and lowering the "per-job" consumable cost.

Pharmaceutical & Cleanroom Facilities

Maintaining ISO class standards requires filters with 99.99% or 99.999% (ULPA) efficiency. Ensure your replacement filters are manufactured in facilities that adhere to strict quality control to avoid pinhole leaks in the media.

3. When to Replace Your HEPA Filter: The Data-Driven Approach

Waiting for a visual cues is a mistake. Professional contractors monitor two specific indicators:

1. Pressure Differential (Magnehelic Gauge): Every negative air machine has a specific "change out" pressure. Typically, when the gauge reads between 2.0" and 3.0" W.G. (depending on the manufacturer), the HEPA filter is loaded and must be replaced to maintain legal exhaust levels.

2. CFM Drop: If your airflow feels significantly weaker at the exhaust, the filter’s resistance has exceeded the motor's capacity.

3. Visible Breach or Odor: Any puncture in the HEPA media or a lingering musty smell indicates a bypass or carbon saturation (if using a combined filter), requiring an immediate swap.

4. Why Professional Contractors Source from Spycor.com

The reliability of your containment depends on the quality of your consumables. Spycor.com specializes in high-intent, industrial-grade filtration solutions that meet the rigorous demands of B2B contractors.

• In-Stock Sizes: From the standard 24" x 24" x 11.5" to compact 12" x 24" variants.

• Verified Performance: Filters designed to maintain high CFM under heavy dust loads.

• Rapid Fulfillment: We understand that project timelines in construction and remediation are tight.

  Browse Industrial HEPA Filter Replacements at Spycor.com

5. Step-by-Step HEPA Replacement Protocol

To ensure safety during a negative air machine HEPA filter replacement, follow these professional steps:

1. PPE: Ensure technicians are wearing appropriate respiratory and skin protection.

2. Double Bagging: Have 6-mil poly bags ready for the spent filter.

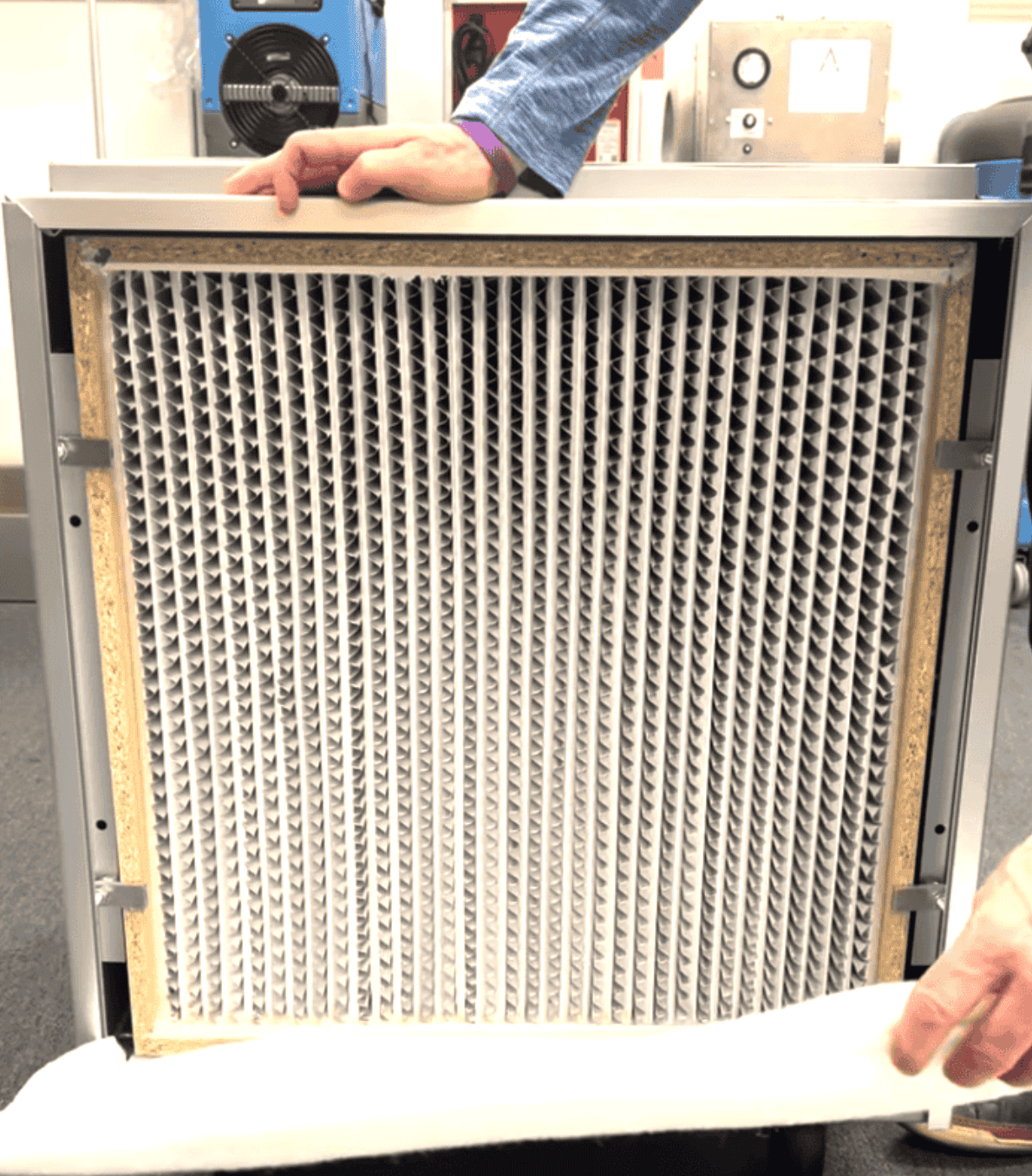

3. Seal Check: When installing the new filter, ensure the gasket is facing the air-intake side and is seated perfectly flush against the housing to prevent air bypass.

4. Verification: After replacement, restart the machine and verify the Magnehelic gauge returns to its "clean" baseline (usually 1.0" - 1.2" W.G.).

Secure Your Job Site Integrity

Don't risk project shutdowns or safety violations with sub-par filtration. Source your certified replacements from a partner that understands industrial airflow.

Order Your HEPA Filter Replacements Today.

Professional FAQ: Negative Air Machine HEPA Filtration

What is the standard size for a negative air machine HEPA filter?

The most common size for full-sized units (2000 CFM) is 24" x 24" x 11.5". Smaller, portable units often use 12" x 24" x 11.5" or custom square sizes. Always measure the depth, as a 12" deep filter may not fit in a housing designed for 11.5".

Can I reuse a HEPA filter if I vacuum it?

No. HEPA filters are "depth" filters. Vacuuming the surface does not remove the microscopic particles trapped within the glass fiber media. Attempting to clean a HEPA filter will damage the fibers, create leaks, and void your safety certifications.

What is the difference between a pre-filter and a HEPA filter in a NAM?

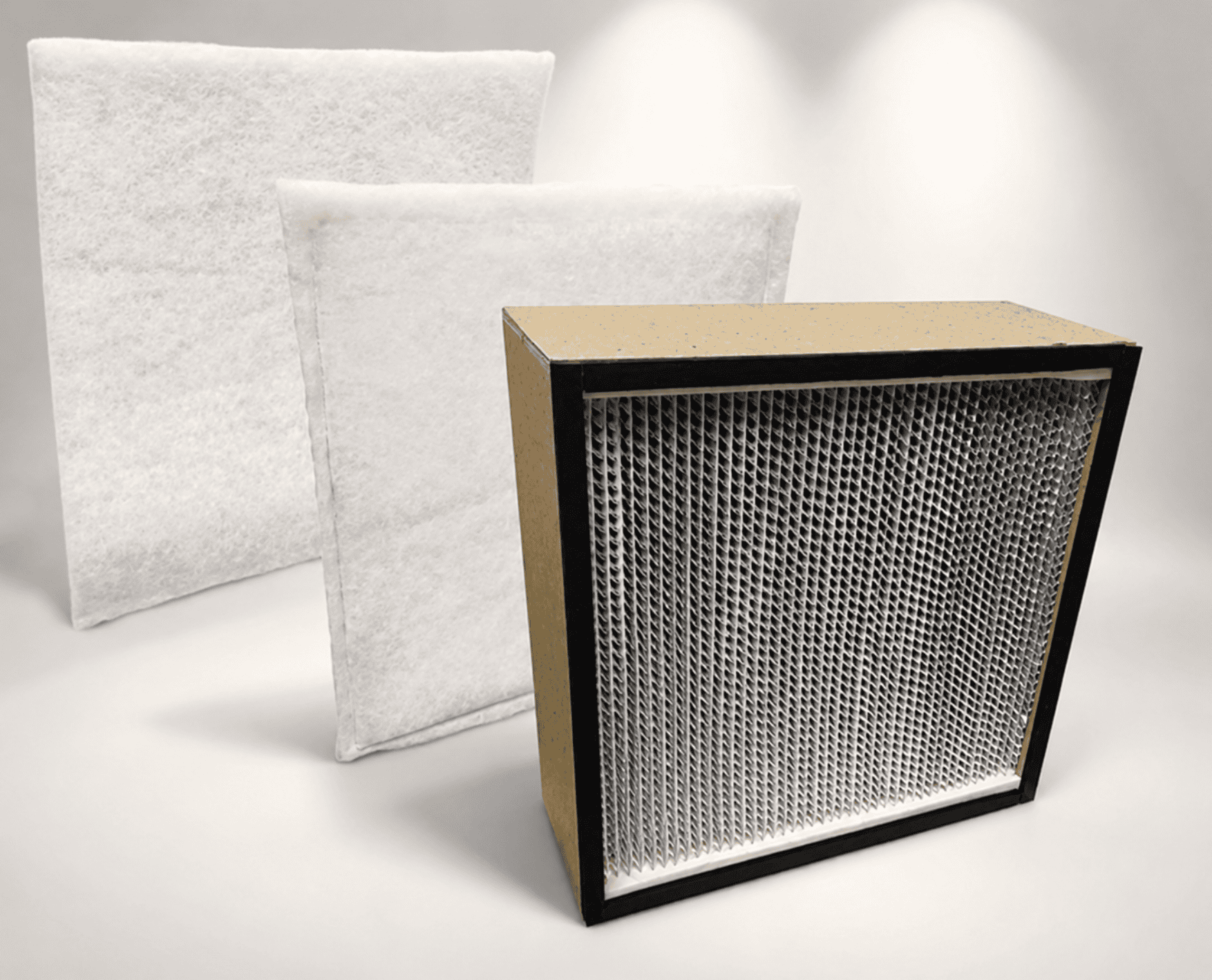

The pre-filter (Stage 1 and 2) captures large dust and debris. The HEPA filter (Stage 3) is the final stage that captures 99.97% of microscopic particles. Regular replacement of pre-filters extends the life of your expensive HEPA filter.

Does a wood frame HEPA filter perform as well as a metal frame?

Yes. In terms of filtration efficiency, the media is the same. The choice depends on the environment; wood is excellent for standard remediation, while metal is preferred for high-humidity or high-temperature industrial applications.
