Managing hydrostatic pressure in deep commercial foundations requires more than a standard drain board. When your project specs demand high compressive strength and the protection of sensitive waterproofing membranes, DELTA®-DRAIN 6200 HI-X is the industry benchmark.

For commercial waterproofing contractors and building envelope specialists, selecting the right drainage composite is the difference between a lifetime of structural integrity and a catastrophic foundation failure.

Why DELTA®-DRAIN 6200 HI-X is the Standard for Commercial Waterproofing

In deep-grade applications, soil weight and hydrostatic pressure can exceed the limits of residential-grade products. DELTA®-DRAIN 6200 HI-X is a high-performance, three-layer composite drainage board designed specifically to handle these extreme environments.

1. Eliminating "Die Cutting" with Polymeric Protection

A common failure point in commercial waterproofing occurs when the drainage board's dimples are pressed into soft, liquid-applied or sheet-applied membranes. This phenomenon, known as "die cutting," thins the membrane and leads to leaks.

DELTA®-DRAIN 6200 HI-X solves this with a polymeric protection sheet (LDPE) adhered to the back side of the dimples. This layer distributes the load and prevents the dimples from puncturing or "cookie-cutting" the waterproofing layer, ensuring the membrane stays at its specified thickness.

2. Extreme Compressive Strength (15,000+ psf)

Engineered from a high-strength copolymer polypropylene, the 6200 HI-X provides a compressive strength of over 15,000 psf. This makes it suitable for installation depths exceeding 45 feet. Unlike polystyrene boards that can become brittle and crack under jobsite stress, this copolymer core remains durable and impact-resistant during backfilling.

3. Superior Filtration and Flow Rates

The front-facing layer is a high-strength, needle-punched non-woven geotextile. It acts as a high-capacity filter, allowing water to pass into the drainage core while preventing soil particles from clogging the system. This ensures a consistent, high-volume flow path to the footing drains.

Critical Applications for Commercial Drain Boards

Commercial projects often involve unique site constraints where water management is non-negotiable. DELTA®-DRAIN 6200 HI-X is optimized for:

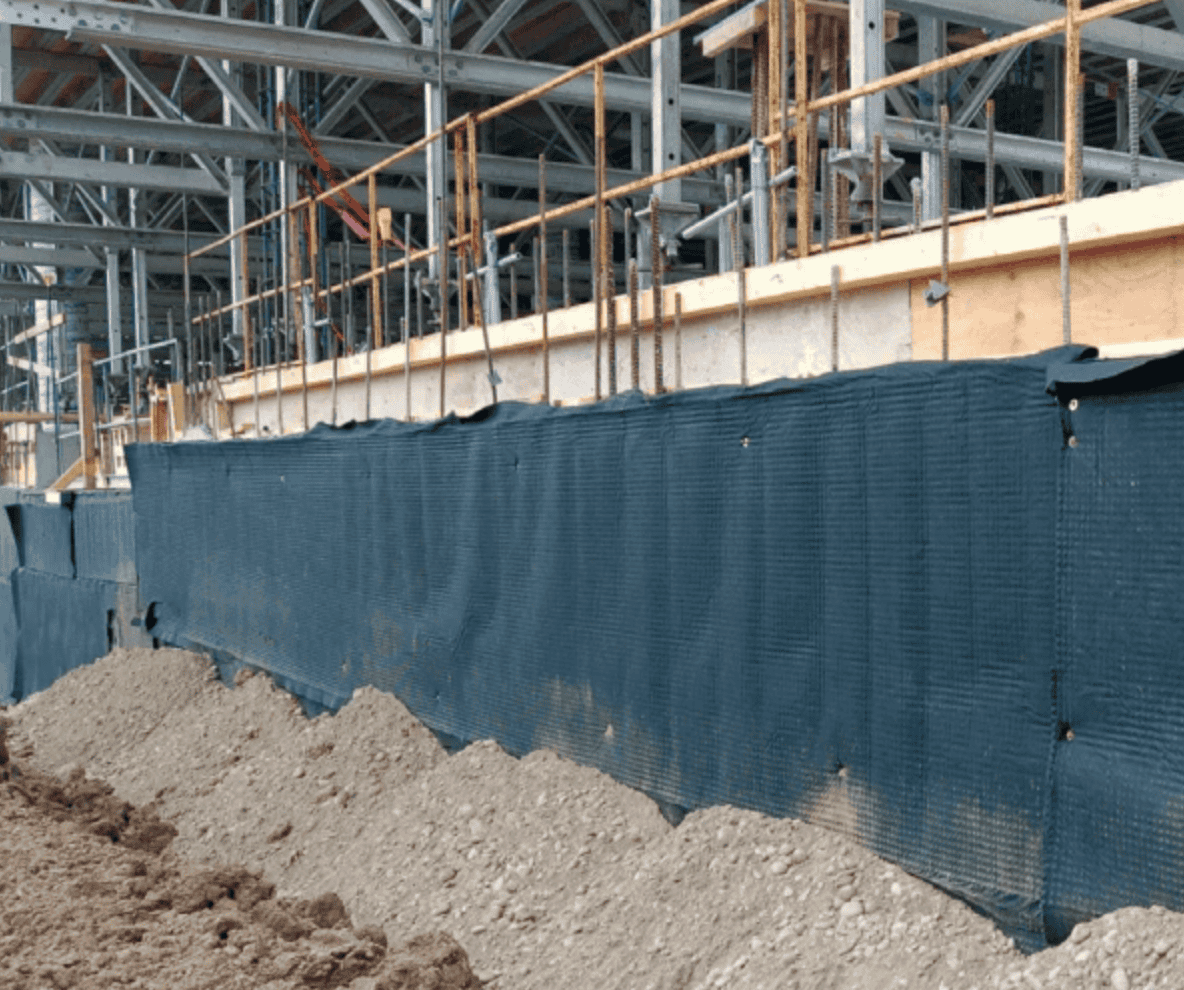

• Deep Foundations: High-rise structures and underground parking garages where vertical drainage is critical.

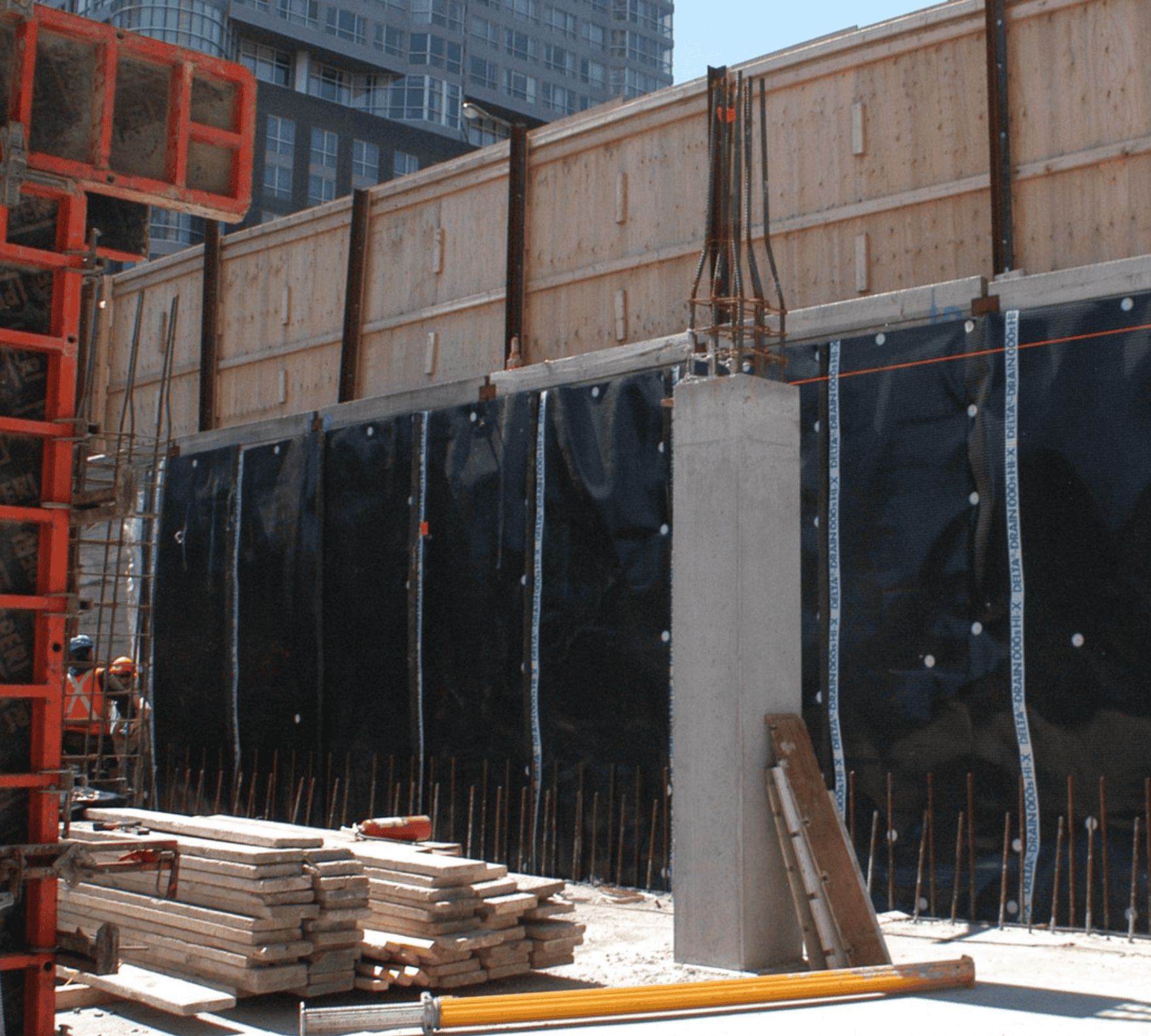

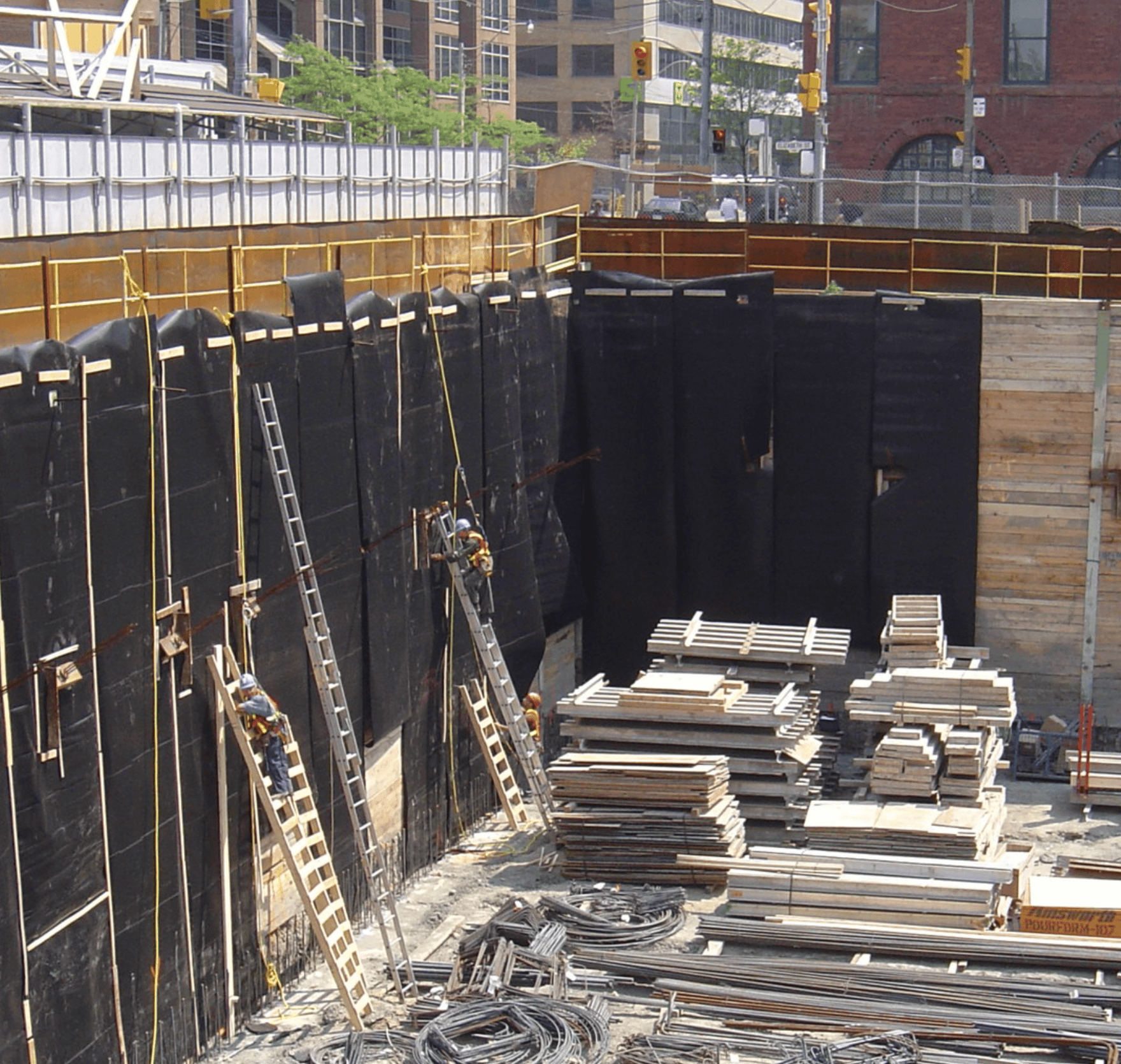

• Blindside Waterproofing: Essential for urban "lot line" construction where the drainage board is installed against the shoring before concrete is poured.

• Retaining Walls: Relieving hydrostatic pressure behind massive civil engineering structures to prevent overturning or structural cracking.

• Infrastructure Projects: Tunnels, bridges, and abutments requiring materials that meet rigorous DOT or institutional specifications.

Solving the "Soft Membrane" Challenge

If you are using rubberized asphalt, cold liquid-applied membranes, or specific peel-and-stick sheets, you cannot afford to use a standard drain board. The "HI-X" designation represents the extra protection needed for these high-performance but delicate layers. By providing a flat, smooth surface against the membrane, the 6200 HI-X preserves the manufacturer's warranty and the structural seal of the building envelope.

Where to Buy DELTA®-DRAIN 6200 HI-X

For contractors and builders, sourcing specialized materials like the 6200 HI-X requires a supplier that understands the technical requirements of the B2B construction sector.

Spycor Building Products is a leading distributor of Dorken products, offering the specialized logistics and inventory levels required for large-scale commercial jobs.

Product Specification:

• Roll Size: 6' x 50' (300 sq. ft.)

• Compressive Strength: >15,000 psf

• Material: Copolymer Polypropylene with LDPE protection sheet

Secure Your Foundation with the Industry’s Most Durable Drain Board

Commercial waterproofing is a "one-and-done" task. Once the foundation is backfilled, the cost of repair is astronomical. Choosing a heavy-duty drainage board like DELTA®-DRAIN 6200 HI-X ensures that your project remains dry, your membrane remains intact, and your reputation remains solid.

Don't compromise on deep-grade protection.

Click Here to Buy DELTA-DRAIN 6200 HI-X

For bulk pricing on large commercial projects or technical submittal assistance, contact the Spycor Building Products team today.

Technical FAQ: DELTA®-DRAIN 6200 HI-X

What is the difference between DELTA-DRAIN 6000 and 6200 HI-X?

While both are high-strength commercial boards, the 6200 HI-X features an additional polymeric protection sheet on the back side. This sheet is specifically designed to protect soft waterproofing membranes from die cutting, which the 6000 series does not offer.

Can DELTA-DRAIN 6200 HI-X be used for blindside waterproofing?

Yes. Its high compressive strength and durable geotextile make it an excellent choice for blindside applications, where it must withstand the pressure of poured concrete.

What is the maximum installation depth for this drain board?

It is rated for depths of 45 feet or more, depending on the specific soil conditions and engineer specifications, thanks to its 15,000+ psf compressive strength.

Does this product resist environmental stress cracking?

Yes. Unlike many competitors that use polystyrene, the copolymer polypropylene used in the 6200 HI-X is highly resistant to environmental stress cracking and jobsite chemicals.

How is the product installed over liquid membranes?

The board is typically mechanically fastened or adhered using compatible adhesives or tapes, with the LDPE protection sheet facing the waterproofing membrane and the geotextile facing the soil.
